FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

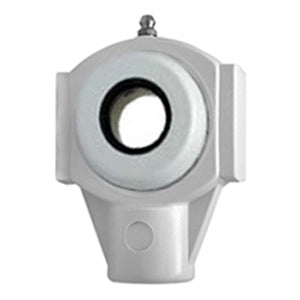

title | UCHPL206-18CW |
price | $ 116.36 / each |
Category | Hanger Unit Bearings |
UNSPSC | 31171513 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | AMI BEARINGS |
Inch - Metric | Inch |
Brand | AMI BEARINGS |
Weight / LBS | 1.48 |
Bore | 1.125 Inch | 28.575 Millimeter |
EAN | 808250401659 |
Other Features | Single Row | Spherical | Wide Inner Race | White Housing | 2 Open Cover |
Relubricatable | Yes |
Mounting Method | Set Screw |
Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
Base to Center Height | 3 Inch | 76.2 Millimeter |
Housing Outside Diameter | 3.5 Inch | 88.9 Millimeter |
Housing Overall Length | 4.922 Inch | 125.019 Millimeter |
Mounting Thread | 5/8 Straight Pipe Female |
Insert Material | Steel |
Housing Style | Hanger Unit |
Insert Part Number | UC206-18 |
Rating | Normal Duty |
Housing Material | Thermoplastic |
Expansion / Non-expansion | Non-expansion |
Seals | Single Lip Contact |
