Specifications

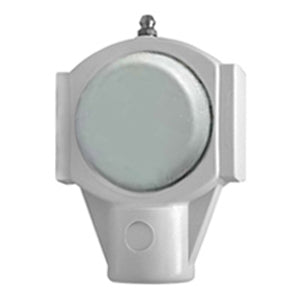

| title | UCHPL207-22CEW |
| price | $ 136.57 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.71 |
| Bore | 1.375 Inch | 34.925 Millimeter |
| EAN | 808250401550 |
| Other Features | Single Row | Spherical | Wide Inner Race | White Housing | 1 Closed Cover | 1 Open Cover |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.689 Inch | 42.901 Millimeter |
| Base to Center Height | 3 Inch | 76.2 Millimeter |
| Housing Outside Diameter | 3.5 Inch | 88.9 Millimeter |
| Housing Overall Length | 4.922 Inch | 125.019 Millimeter |
| Mounting Thread | 5/8 Straight Pipe Female |
| Insert Material | Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC207-22 |
| Rating | Normal Duty |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
