AMI BEARINGS

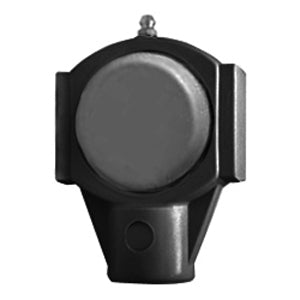

AMI BEARINGS UCHPL204-12MZ20RFB

  • Write a review
  • FREE SHIPPING on orders over $100
    • $139.15 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCHPL204-12MZ20RFB
    price $ 163.70 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name AMI BEARINGS
    Inch - Metric Inch
    Brand AMI BEARINGS
    Weight / LBS 0.7
    Bore 0.75 Inch | 19.05 Millimeter
    EAN 808250402168
    Other Features Single Row | Spherical | Wide Inner Race | Black Housing | Buna Nitrile Seal
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 1.22 Inch | 30.988 Millimeter
    Base to Center Height 2.5 Inch | 63.5 Millimeter
    Housing Outside Diameter 2.563 Inch | 65.1 Millimeter
    Housing Overall Length 3.891 Inch | 98.831 Millimeter
    Mounting Thread 1/2 Straight Pipe Female
    Insert Material Nickel Coated Steel
    Housing Style Hanger Unit
    Insert Part Number UC204-12MZ20RF
    Rating Normal Duty
    Housing Material Thermoplastic
    Expansion / Non-expansion Non-expansion
    Seals Double Lip Contact
