Specifications

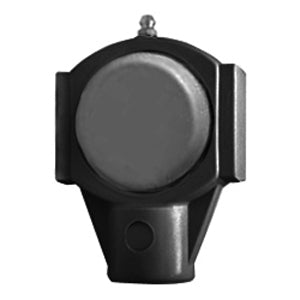

| title | UCHPL201-8MZ20CEB |
| price | $ 155.74 / each |
| Category | Hanger Unit Bearings |
| UNSPSC | 31171513 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | AMI BEARINGS |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.83 |
| Bore | 0.5 Inch | 12.7 Millimeter |
| EAN | 808250401901 |
| Other Features | Single Row | Spherical | Wide Inner Race | Black Housing | 1 Closed Cover | 1 Open Cover |
| Relubricatable | Yes |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 30.988 Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Housing Outside Diameter | 2.563 Inch | 65.1 Millimeter |
| Housing Overall Length | 3.891 Inch | 98.831 Millimeter |
| Mounting Thread | 1/2 Straight Pipe Female |
| Insert Material | Nickel Coated Steel |
| Housing Style | Hanger Unit |
| Insert Part Number | UC201-8MZ20 |
| Rating | Normal Duty |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
