Specifications
| title | SP4B-S2-407RE |
| price | $ 3,561.56 / each |

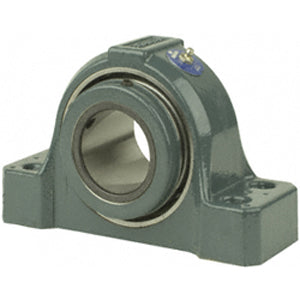

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 38.77 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 85.39 |
| Other Features | Double Row | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 499807 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 6.531 Inch | 165.887 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.5 Inch | 342.5 Millimeter |
| Bolt Spacing Minimum | 13 Inch | 330.2Millimeter |
| Base to Center Height | 4.75 Inch | 120.65 Millimeter |
| Bolt Spacing Maximum | 14 Inch | 355.6Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | INS-S2-407R |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Steel |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
