Specifications

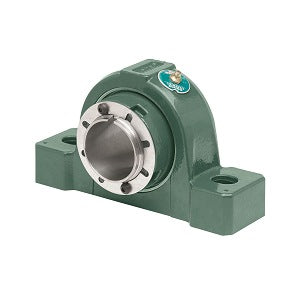

| title | P2B-IP-107R |
| price | $ 307.57 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 2.692 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 5.93 |
| Other Features | Double Row | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 522213 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 2.625 Inch | 66.675 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.3 Inch | 133.5 Millimeter |
| Bolt Spacing Minimum | 4.813 Inch | 122.25Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 5.203 Inch | 132.156Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | INS-IP-107R |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
