LINK BELT

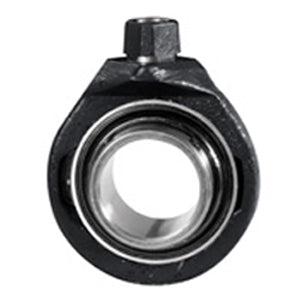

LINK BELT HM3U2E32E3

  • Write a review
  • FREE SHIPPING on orders over $100
    • $482.15 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day

    Specifications


    title HM3U2E32E3
    price $ 567.24 / each
    Category Hanger Unit Bearings
    UNSPSC 31171513
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name LINK BELT
    Inch - Metric Inch
    Brand LINK BELT
    Weight / LBS 6.3
    Bore 2 Inch | 50.8 Millimeter
    EAN 662327040178
    Other Features Single Row | Spherical | Wide Inner Race | Spring Locking
    Relubricatable Yes
    Mounting Method Set Screw
    Length Thru Bore 2.094 Inch | 53.188 Millimeter
    Base to Center Height 2.5 Inch | 63.5 Millimeter
    Housing Outside Diameter 4.375 Inch | 111.125 Millimeter
    Housing Overall Length 5.44 Inch | 138.176 Millimeter
    Mounting Thread 3/4 Straight Pipe Female
    Insert Material Steel
    Housing Style Hanger Unit
    Insert Part Number UG2E32E3L
    Rating Normal Duty
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Triple Lip Contact
