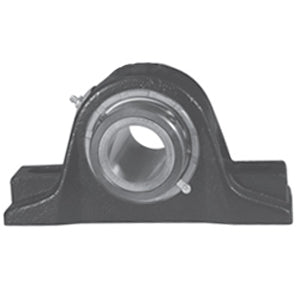

![ZPS5107 Pillow Block Bearings](http://www.lilybearingonline.com/cdn/shop/products/INDREXPBXXXX-KP5-2BLT-300x300_ab97785c-8ea6-4d41-8ddb-2e3f18bc266b_{width}x.jpg?v=1571722894)
FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
title | ZPS5107 |
price | $ 489.20 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | REXNORD |
Inch - Metric | Inch |
Brand | REXNORD |
Weight / LBS | 10.7 |
Other Features | Double Row | Heavy Duty | Double Collar | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 501828 |
Mounting Method | Concentric Collar |
Length Thru Bore | 3.563 Inch | 90.5 Millimeter |
Actual Bolt Center to Center | 5.9 Inch | 149.9Millimeter |
Nominal Bolt Center to Center | 5.9 Inch | 150 Millimeter |
Bolt Spacing Minimum | 0 Inch | 0Millimeter |
Base to Center Height | 2.125 Inch | 53.98 Millimeter |
Bolt Spacing Maximum | 0 Inch | 0Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | 5107U |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Expansion |
Seals | Clearance Seal |
Housing Material | Cast Iron |
Mounting Bolts | 1/2 Inch |
Housing Configuration | 1 Piece Solid |
