FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

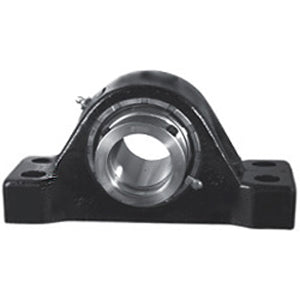

| title | ZEP9315YF |
| price | $ 3,700.63 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 75.9 |
| Other Features | Double Row | Heavy Duty | Redesigned Shaft Size |
| Relubricatable | Yes |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.406 Inch | 137.312 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.5 Inch | 342.5 Millimeter |
| Bolt Spacing Minimum | 12.875 Inch | 327.03Millimeter |
| Base to Center Height | 4.75 Inch | 120.65 Millimeter |
| Bolt Spacing Maximum | 14.125 Inch | 358.78Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 9315YU |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
