FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

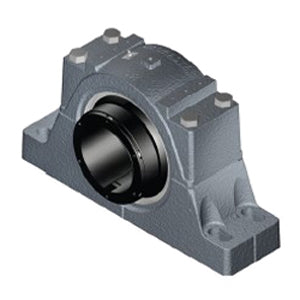

| title | USRB5532A-507-C |
| price | $ 4,912.21 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 214 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 7.875 Inch | 200.03 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 18.3 Inch | 464.8 Millimeter |
| Bolt Spacing Minimum | 17.375 Inch | 441.325Millimeter |
| Base to Center Height | 6.688 Inch | 169.875 Millimeter |
| Bolt Spacing Maximum | 19.25 Inch | 488.95Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | USI5000A-507-C |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
