Specifications

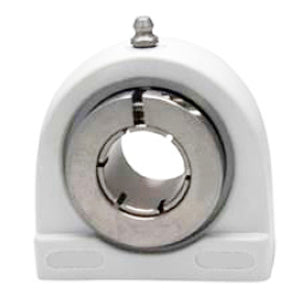

| title | UETBL205W |
| price | $ 114.11 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.42 |
| Inch - Metric | MetricMetric |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.93 |
| Other Features | Single Row | Spherical | Normal Duty | White HousingSingle Row | Spherical | Normal Duty | White Housing |
| Relubricatable | YesYes |
| Global Part Number GPN | 523601 |
| Mounting Method | Concentric CollarConcentric Collar |
| Length Thru Bore | 1.394 Inch | 35.4 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 2 Inch | 52 Millimeter |
| Bolt Spacing Minimum | 2 Inch | 50.8Millimeter |
| Base to Center Height | 1.437 Inch | 36.5 Millimeter |
| Bolt Spacing Maximum | 2 Inch | 50.8Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block2 Bolt Tap Base Pillow Block |
| Insert Part Number | UE205UE205 |
| Number of Mounting Holes | 22 |
| Expansion / Non-expansion | Non-expansionNon-expansion |
| Seals | Contact SealContact Seal |
| Housing Material | ThermoplasticThermoplastic |
| Mounting Bolts | 3/8 Inch3/8 Inch |
| Housing Configuration | 1 Piece Solid1 Piece Solid |
