FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

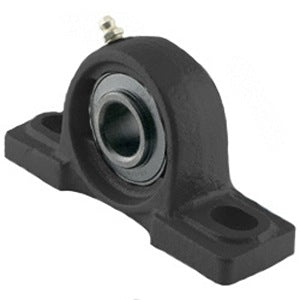

| title | UEPPL206-20B |
| price | $ 108.68 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.65 |
| Inch - Metric | InchInch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.43 |
| Other Features | Single Row | Spherical | Normal Duty | Black HousingSingle Row | Spherical | Normal Duty | Black Housing |
| Relubricatable | YesYes |
| Global Part Number GPN | 523701 |
| Mounting Method | Concentric CollarConcentric Collar |
| Length Thru Bore | 1.469 Inch | 37.3 Millimeter |
| Actual Bolt Center to Center | 4.7 Inch | 119Millimeter |
| Nominal Bolt Center to Center | 4.7 Inch | 119 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.688 Inch | 42.875 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block2 Bolt Pillow Block |
| Insert Part Number | UE206-20UE206-20 |
| Number of Mounting Holes | 22 |
| Expansion / Non-expansion | Non-expansionNon-expansion |
| Seals | Contact SealContact Seal |
| Housing Material | ThermoplasticThermoplastic |
| Mounting Bolts | 1/2 Inch1/2 Inch |
| Housing Configuration | 1 Piece Solid1 Piece Solid |
