FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

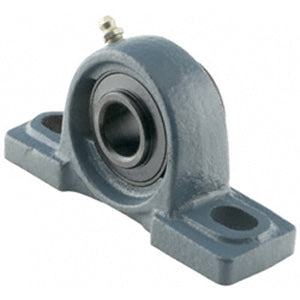

| title | UEP211-35NP |
| price | $ 192.56 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 3.69 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 8.13 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 500574 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.228 Inch | 56.6 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.375 Inch | 161.925Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 7.125 Inch | 180.975Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UE211-35 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
