AMI BEARINGS

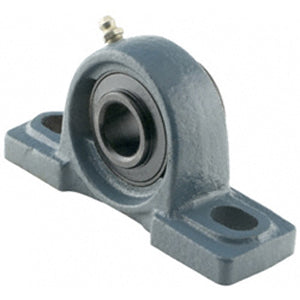

AMI BEARINGS UEP210TC

  • Write a review
  • FREE SHIPPING on orders over $100
    • $143.41 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UEP210TC
    price $ 168.72 / each
    Category Pillow Block Bearings
    UNSPSC 31171511
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name ASAHI BEARINGS
    Weight / kgm 3.378
    Inch - Metric Metric
    Brand AMI BEARINGS
    Weight / LBS 6.64
    Other Features Single Row | Spherical | Normal Duty
    Relubricatable Yes
    Global Part Number GPN 523620
    Mounting Method Concentric Collar
    Length Thru Bore 2.071 Inch | 52.6 Millimeter
    Actual Bolt Center to Center 0 Inch | 0Millimeter
    Nominal Bolt Center to Center 6.3 Inch | 160 Millimeter
    Bolt Spacing Minimum 5.866 Inch | 149Millimeter
    Base to Center Height 2.252 Inch | 57.2 Millimeter
    Bolt Spacing Maximum 6.614 Inch | 168Millimeter
    Housing Style 2 Bolt Pillow Block
    Insert Part Number UE210
    Number of Mounting Holes 2
    Expansion / Non-expansion Non-expansion
    Seals Contact Seal
    Housing Material Teflon Coated Cast Iron
    Mounting Bolts 16 Millimeter
    Housing Configuration 1 Piece Solid
