Specifications

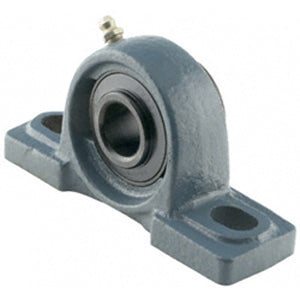

| title | UEP209-28NP |
| price | $ 151.10 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 2.61 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 5.74 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 523632 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.976 Inch | 50.2 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.8 Inch | 146.5 Millimeter |
| Bolt Spacing Minimum | 5.375 Inch | 136.525Millimeter |
| Base to Center Height | 2.125 Inch | 53.98 Millimeter |
| Bolt Spacing Maximum | 6.125 Inch | 155.575Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UE209-28 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Nickel Coated Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
