Specifications

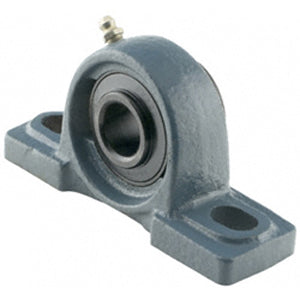

| title | UEP206NP |
| price | $ 102.19 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.553 |
| Inch - Metric | MetricMetric |
| Brand | AMI BEARINGS |
| Weight / LBS | 3.12 |
| Other Features | Single Row | Spherical | Normal DutySingle Row | Spherical | Normal Duty |
| Relubricatable | YesYes |
| Global Part Number GPN | 523657 |
| Mounting Method | Concentric CollarConcentric Collar |
| Length Thru Bore | 1.567 Inch | 39.8 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.8 Inch | 121 Millimeter |
| Bolt Spacing Minimum | 4.449 Inch | 113Millimeter |
| Base to Center Height | 1.689 Inch | 42.9 Millimeter |
| Bolt Spacing Maximum | 5.079 Inch | 129Millimeter |
| Housing Style | 2 Bolt Pillow Block2 Bolt Pillow Block |
| Insert Part Number | UE206UE206 |
| Number of Mounting Holes | 22 |
| Expansion / Non-expansion | Non-expansionNon-expansion |
| Seals | Contact SealContact Seal |
| Housing Material | Nickel Coated Cast IronNickel Coated Cast Iron |
| Mounting Bolts | 14 Millimeter14 Millimeter |
| Housing Configuration | 1 Piece Solid1 Piece Solid |
