Specifications
| title | UELPL-1.3/16 |
| price | $ 73.54 / each |

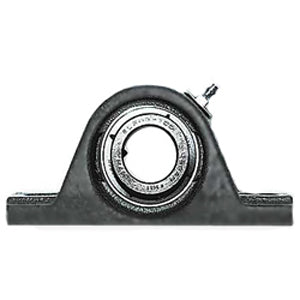

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 1.01 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 2.227 |
| Other Features | Single Row | Wide Inner Race | Low Base | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 514465 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.906 Inch | 48.42 Millimeter |
| Actual Bolt Center to Center | 4.6 Inch | 117.5Millimeter |
| Nominal Bolt Center to Center | 4.8 Inch | 121 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.563 Inch | 39.7 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | A-UEL206-103D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
