FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

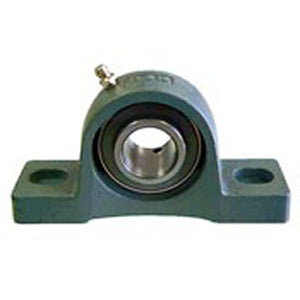

| title | UELP208TC |
| price | $ 130.47 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 2.352 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 5.18 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 523774 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.976 Inch | 50.2 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.6 Inch | 142.5 Millimeter |
| Bolt Spacing Minimum | 5.236 Inch | 133Millimeter |
| Base to Center Height | 1.937 Inch | 49.2 Millimeter |
| Bolt Spacing Maximum | 5.984 Inch | 152Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UE208 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Housing Material | Teflon Coated Cast Iron |
| Mounting Bolts | 12 Millimeter |
| Housing Configuration | 1 Piece Solid |
