FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

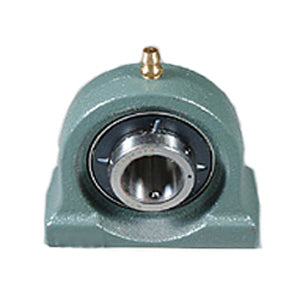

| title | UCUP205D1 |
| price | $ 64.64 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.7 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 1.543 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 514512 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.343 Inch | 34.1 Millimeter |
| Actual Bolt Center to Center | 2.2 Inch | 56Millimeter |
| Nominal Bolt Center to Center | 2.2 Inch | 56 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.437 Inch | 36.5 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | UC205D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 10 Millimeter |
| Housing Configuration | 1 Piece Solid |
