Specifications

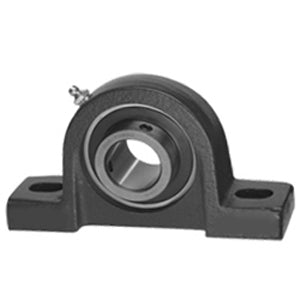

| title | UCPL 211 32 L3 |
| price | $ 89.01 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 8.7 |
| Other Features | Single Row | Standard Duty | Wide Inner Race | Low Base |
| Relubricatable | Yes |
| Global Part Number GPN | 518608 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.189 Inch | 55.6 Millimeter |
| Actual Bolt Center to Center | 7 Inch | 178Millimeter |
| Nominal Bolt Center to Center | 6.9 Inch | 175.3 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.438 Inch | 61.925 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UC211-32 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | L3 Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
