IPTCI

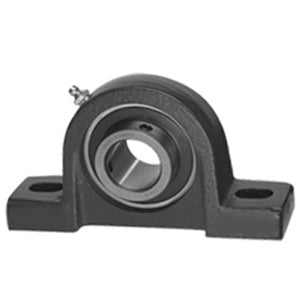

IPTCI UCPL 209 45MM

  • Write a review
  • FREE SHIPPING on orders over $100
    • $45.70 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCPL 209 45MM
    price $ 53.76 / each
    Category Pillow Block Bearings
    UNSPSC 31171511
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Metric
    Brand IPTCI
    Weight / LBS 5.7
    Other Features Single Row | Standard Duty | Wide Inner Race | Low Base
    Relubricatable Yes
    Global Part Number GPN 518618
    Mounting Method Set Screw
    Length Thru Bore 1.937 Inch | 49.2 Millimeter
    Actual Bolt Center to Center 5.7 Inch | 146Millimeter
    Nominal Bolt Center to Center 6 Inch | 152.5 Millimeter
    Bolt Spacing Minimum 0 Inch | 0Millimeter
    Base to Center Height 2.063 Inch | 52.4 Millimeter
    Bolt Spacing Maximum 0 Inch | 0Millimeter
    Housing Style 2 Bolt Pillow Block
    Insert Part Number UC209
    Number of Mounting Holes 2
    Expansion / Non-expansion Non-expansion
    Seals B Seal
    Housing Material Cast Iron
    Mounting Bolts 1/2 Inch
    Housing Configuration 1 Piece Solid
