Specifications

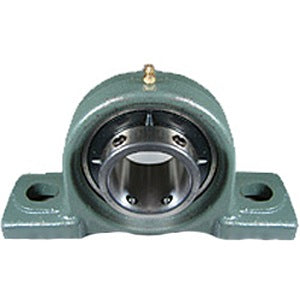

| title | UCP209-111D1 |
| price | $ 70.05 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 2.256 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 4.9 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 514604 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Actual Bolt Center to Center | 5.8 Inch | 147.3Millimeter |
| Nominal Bolt Center to Center | 5.8 Inch | 147.3 Millimeter |
| Base to Center Height | 2.125 Inch | 53.975 Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UC209-111D1 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
