NTN

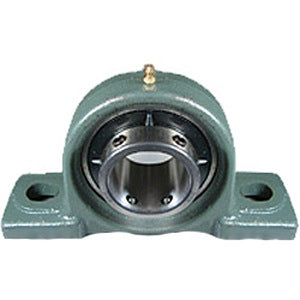

NTN UCP206-104D1

  • Write a review
  • FREE SHIPPING on orders over $100
    • $38.93 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCP206-104D1
    price $ 45.80 / each
    Category Pillow Block Bearings
    UNSPSC 31171511
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name NTN
    Weight / kgm 1.311
    Inch - Metric Inch
    Brand NTN
    Weight / LBS 3.1
    Other Features Single Row | Light Duty | Wide Inner Race | Has Flinger
    Relubricatable Yes
    Global Part Number GPN 514622
    Mounting Method Set Screw
    Length Thru Bore 1.5 Inch | 38.1 Millimeter
    Actual Bolt Center to Center 4.8 Inch | 121Millimeter
    Nominal Bolt Center to Center 4.8 Inch | 121 Millimeter
    Bolt Spacing Minimum 0 Inch | 0Millimeter
    Base to Center Height 1.688 Inch | 42.875 Millimeter
    Bolt Spacing Maximum 0 Inch | 0Millimeter
    Housing Style 2 Bolt Pillow Block
    Insert Part Number UC206-104D1
    Number of Mounting Holes 2
    Expansion / Non-expansion Non-expansion
    Seals Single Lip Land Riding
    Housing Material Cast Iron
    Mounting Bolts 1/2 Inch
    Housing Configuration 1 Piece Solid
