Specifications

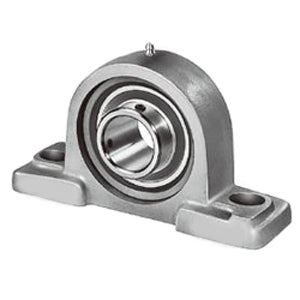

| title | UCEP210-31C4HR5 |
| price | $ 259.43 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4.1 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 9.02 |
| Other Features | Single Row | Spherical | Normal Duty | High Temperature Range Up to 400 Degree F | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 525110 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.031 Inch | 51.59 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 6.344 Inch | 161.138Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 7.156 Inch | 181.762Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UC210-31C4HR5 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Contact Seal |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
