Specifications
| title | TB-SXR-107-NL MOD |
| price | $ 123.45 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ABB MOTORS AND MECHANICAL INC |
| Weight / kgm | 1.73 |
| Inch - Metric | Inch |
| Brand | DODGE |
| Weight / LBS | 3.8 |
| Other Features | Single Row | Normal Duty | Wide Inner Race |
| Relubricatable | No |
| Global Part Number GPN | 520581 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.016 Inch | 51.2 Millimeter |
| Actual Bolt Center to Center | 3.3 Inch | 84Millimeter |
| Nominal Bolt Center to Center | 3.3 Inch | 84 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |

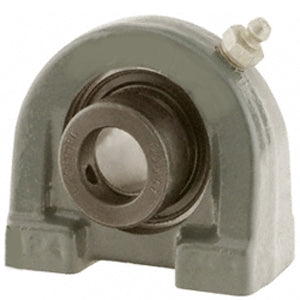

| Housing Style | 2 Bolt Tap Base Pillow Block |
| Insert Part Number | INS-SXR-107 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
