Specifications

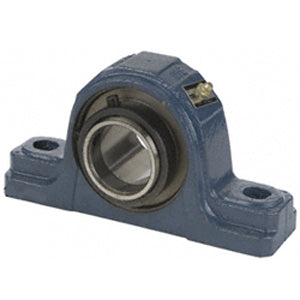

| title | SYE 2.3/16 H |
| price | $ 346.66 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Weight / kgm | 6.13 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 13.5 |
| Other Features | Double Row | Heavy Duty | Locating Bearing | Open End | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 501160 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.125 Inch | 79.38 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.8 Inch | 199.2 Millimeter |
| Bolt Spacing Minimum | 7.5 Inch | 190.5Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 8 Inch | 203.2Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22211 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Trigard |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
