Specifications
| title | SYE 1.3/4 |
| price | $ 336.95 / each |

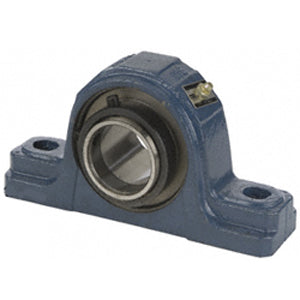

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 9.3 |
| Other Features | Double Row | Heavy Duty | Open End | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 501180 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.7 Inch | 170 Millimeter |
| Bolt Spacing Minimum | 6.75 Inch | 171.45Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 7.25 Inch | 184.15Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22209 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Trigard |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
