Specifications

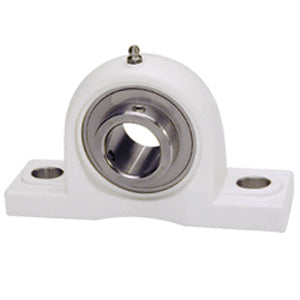

| title | SUCTP 204 12 |
| price | $ 79.18 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI BEARINGS |
| Weight / kgm | 0.362 |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 0.8 |
| Other Features | Single Row | Corrosion Resistant | Stainless Steel Insert | Has Slinger | Optional End Cap |
| Relubricatable | Yes |
| Global Part Number GPN | 518744 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.221 Inch | 31.013 Millimeter |
| Actual Bolt Center to Center | 3.8 Inch | 96Millimeter |
| Nominal Bolt Center to Center | 3.8 Inch | 97 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.313 Inch | 33.35 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SUC204-12 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Housing Material | Thermoplastic |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
