Specifications

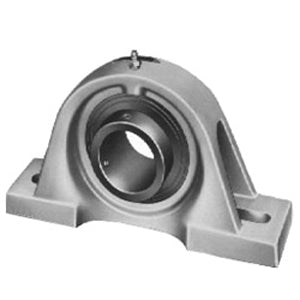

| title | SP-216 |
| price | $ 1,502.09 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 34 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6923 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.25 Inch | 82.55 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 11.4 Inch | 290 Millimeter |
| Bolt Spacing Minimum | 10.625 Inch | 269.875Millimeter |
| Base to Center Height | 3.937 Inch | 100 Millimeter |
| Bolt Spacing Maximum | 12.125 Inch | 307.975Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 5216 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
