Specifications

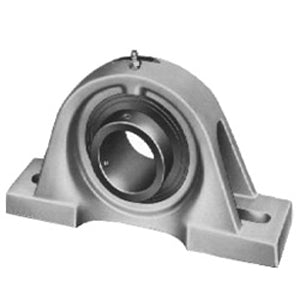

| title | SP-20 |
| price | $ 225.88 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 3.178 |
| Inch - Metric | Inch |
| Brand | SEALMASTER |
| Weight / LBS | 7 |
| Other Features | Single Row | Standard Duty | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 6894 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.688 Inch | 42.87 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
| Bolt Spacing Minimum | 5.625 Inch | 142.875Millimeter |
| Base to Center Height | 2.375 Inch | 60.325 Millimeter |
| Bolt Spacing Maximum | 6.875 Inch | 174.625Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 2-14 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
