FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

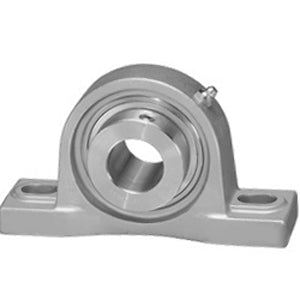

| title | SNASP 205 16 |
| price | $ 126.59 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI BEARINGS |
| Weight / kgm | 0.997 |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 2.2 |
| Other Features | Single Row | Corrosion Resistant | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 518961 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.622 Inch | 41.2 Millimeter |
| Actual Bolt Center to Center | 4.1 Inch | 105Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.438 Inch | 36.525 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | SNA205-16 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Housing Material | Stainless Steel |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
