Specifications

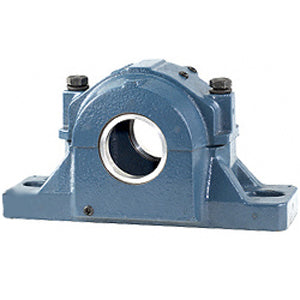

| title | SAFS 22224 Y |
| price | $ 3,285.35 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Inch - Metric | Metric |
| Brand | SKF |
| Weight / LBS | 117.749 |
| Other Features | Double Row | Heavy Duty | Closed End |
| Relubricatable | Yes |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 7.375 Inch | 187.325 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.9 Inch | 353.1 Millimeter |
| Bolt Spacing Minimum | 13.25 Inch | 336.55Millimeter |
| Base to Center Height | 5.25 Inch | 133.35 Millimeter |
| Bolt Spacing Maximum | 14.5 Inch | 368.3Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22224 E |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Steel |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
