FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

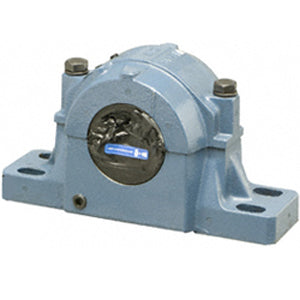

| title | SAF 23048 KAX8.7/16 |
| price | $ 10,019.29 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | SKF |
| Weight / kgm | 215.2 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 474 |
| Other Features | Double Row | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 501403 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 11.25 Inch | 285.75 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 23.8 Inch | 603.3 Millimeter |
| Bolt Spacing Minimum | 22.5 Inch | 571.5Millimeter |
| Base to Center Height | 8.25 Inch | 209.55 Millimeter |
| Bolt Spacing Maximum | 25 Inch | 635Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 23048 CCK/W33 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1-1/4 Inch |
| Housing Configuration | 2 Piece Split |
