Specifications

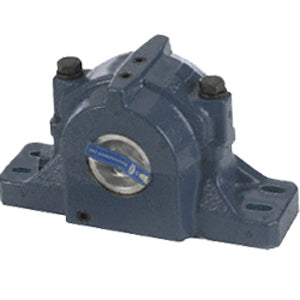

| title | SAF 1522/C3 |
| price | $ 1,509.71 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | SKF |
| Weight / kgm | 31.33 |
| Inch - Metric | Inch |
| Brand | SKF |
| Weight / LBS | 69 |
| Other Features | Double Row | Medium Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 501501 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 6.5 Inch | 165.1 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 13.6 Inch | 344.5 Millimeter |
| Bolt Spacing Minimum | 12.625 Inch | 320.675Millimeter |
| Base to Center Height | 4.938 Inch | 125.425 Millimeter |
| Bolt Spacing Maximum | 14.5 Inch | 368.3Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 1222 K |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 2 Piece Split |
