Specifications

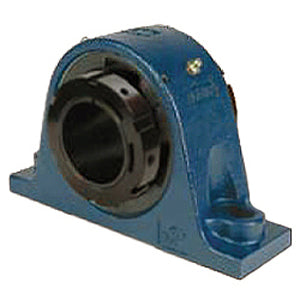

| title | QVVSN11V115SEO |
| price | $ 554.02 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 29 |
| Other Features | Double Row | Double Nut | SN Style |
| Relubricatable | Yes |
| Global Part Number GPN | 495171 |
| Mounting Method | V Lock |
| Length Thru Bore | 4.016 Inch | 102 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.8 Inch | 199.2 Millimeter |
| Bolt Spacing Minimum | 7.205 Inch | 183Millimeter |
| Base to Center Height | 2.75 Inch | 69.85 Millimeter |
| Bolt Spacing Maximum | 8.504 Inch | 216Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22211 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Urethane |
| Housing Material | Cast Steel |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
