Specifications

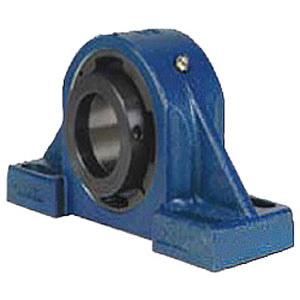

| title | QVVPF28V130SEM |
| price | $ 4,046.85 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 134 |
| Other Features | Double Row | Double Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 496200 |
| Mounting Method | V Lock |
| Length Thru Bore | 7.02 Inch | 178.3 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 15.5 Inch | 393.7 Millimeter |
| Bolt Spacing Minimum | 15.125 Inch | 384.175Millimeter |
| Base to Center Height | 5.5 Inch | 139.7 Millimeter |
| Bolt Spacing Maximum | 15.875 Inch | 403.225Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22228 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Nitrile Rubber |
| Housing Material | Cast Steel |
| Mounting Bolts | 7/8 Inch |
| Housing Configuration | 1 Piece Solid |
