FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

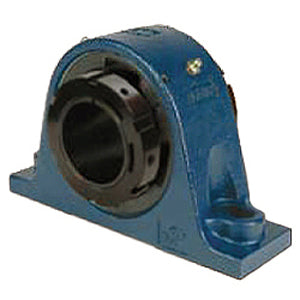

| title | QMP08J107SEM |
| price | $ 272.01 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 9 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 510245 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.75 Inch | 69.85 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 5.3 Inch | 133.5 Millimeter |
| Bolt Spacing Minimum | 4.69 Inch | 119.126Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 6 Inch | 152.4Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | 22208 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Triple Lip Nitrile Rubber |
| Housing Material | Cast Steel |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
