Specifications

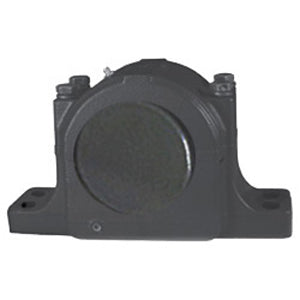

| title | PLB78150FRC |
| price | $ 5,590.50 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 182 |
| Other Features | Double Row | Closed End |
| Relubricatable | Yes |
| Global Part Number GPN | 516604 |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 17.6 Inch | 447 Millimeter |
| Bolt Spacing Minimum | 17 Inch | 431.8Millimeter |
| Base to Center Height | 6.313 Inch | 160.35 Millimeter |
| Bolt Spacing Maximum | 18.25 Inch | 463.55Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22230LBC3 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Multi Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
