FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

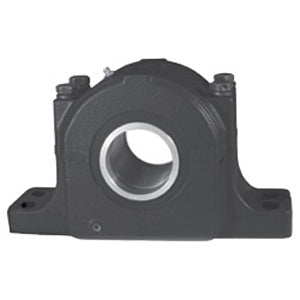

| title | PLB78140FRT2K1 |
| price | $ 4,778.52 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 170 |
| Other Features | Double Row | With Locknut and Washer |
| Relubricatable | Yes |
| Mounting Method | Shaft Mount |
| Length Thru Bore | 0 Inch | 0 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 16.6 Inch | 420.7 Millimeter |
| Bolt Spacing Minimum | 16 Inch | 406.4Millimeter |
| Base to Center Height | 6 Inch | 152.4 Millimeter |
| Bolt Spacing Maximum | 17.125 Inch | 434.975Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | 22228LBC3 |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Multi Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 2 Piece Split |
