FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

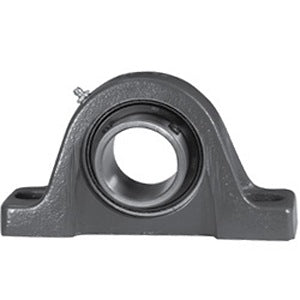

| title | PL3S216MHFF |
| price | $ 66.73 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 1.67 |
| Other Features | Single Row | Standard Duty | 10% Grease Fill | Flingers Only |
| Relubricatable | Yes |
| Global Part Number GPN | 516309 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.172 Inch | 29.77 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 4.1 Inch | 105 Millimeter |
| Bolt Spacing Minimum | 3.438 Inch | 87.325Millimeter |
| Base to Center Height | 1.313 Inch | 33.35 Millimeter |
| Bolt Spacing Maximum | 4.563 Inch | 115.9Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | MB251-MHFFPA |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Free Running MHFF |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/8 Inch |
| Housing Configuration | 1 Piece Solid |
