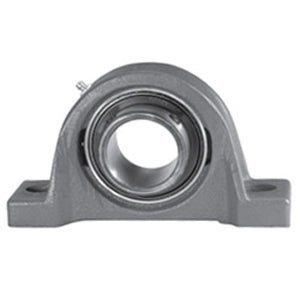

![PL3S212E Pillow Block Bearings](http://www.lilybearingonline.com/cdn/shop/products/INDL-BPBXXXX-PL3S-2BLT-300x300_4270414f-3f48-46fd-95a6-e3db32880049_{width}x.jpg?v=1571730304)
FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
title | PL3S212E |
price | $ 52.56 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | LINK BELT |
Inch - Metric | Inch |
Brand | LINK BELT |
Weight / LBS | 1.4 |
Other Features | Single Row | Intermediate Duty | Low Base | Extended Inner Race |
Relubricatable | Yes |
Global Part Number GPN | 245831 |
Mounting Method | Set Screw |
Length Thru Bore | 1.125 Inch | 28.58 Millimeter |
Actual Bolt Center to Center | 3.9 Inch | 100Millimeter |
Nominal Bolt Center to Center | 3.8 Inch | 97 Millimeter |
Bolt Spacing Minimum | 0 Inch | 0Millimeter |
Base to Center Height | 1.25 Inch | 31.75 Millimeter |
Bolt Spacing Maximum | 0 Inch | 0Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | SG212EL |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Non-expansion |
Seals | Single Lip Contact |
Housing Material | Cast Iron |
Mounting Bolts | 3/8 Inch |
Housing Configuration | 1 Piece Solid |
