Specifications

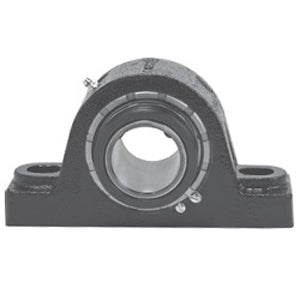

| title | PKEB224M55H |
| price | $ 958.49 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Metric |
| Brand | LINK BELT |
| Weight / LBS | 15.653 |
| Other Features | Double Row | Single Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 516950 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.313 Inch | 84.14 Millimeter |
| Actual Bolt Center to Center | 6.7 Inch | 170Millimeter |
| Nominal Bolt Center to Center | 6.8 Inch | 171.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B224M55HL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Steel |
| Mounting Bolts | 16 Millimeter |
| Housing Configuration | 1 Piece Solid |
