Specifications

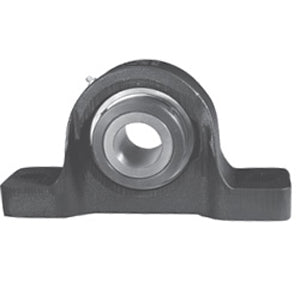

| title | PEU363 |
| price | $ 4,782.45 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 44.49 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 98 |
| Other Features | Single Row | Heavy Duty | Single Collar | Standard Backing | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517126 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.563 Inch | 141.3 Millimeter |
| Actual Bolt Center to Center | 14.5 Inch | 368.3Millimeter |
| Nominal Bolt Center to Center | 14.5 Inch | 368 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 5.688 Inch | 144.475 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | UG363L |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Steel Clad Clearance |
| Housing Material | Cast Iron |
| Mounting Bolts | 1 Inch |
| Housing Configuration | 1 Piece Solid |
