LINK BELT

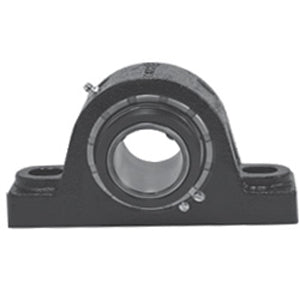

LINK BELT PEB22631H

  • Write a review
  • FREE SHIPPING on orders over $100
    • $525.09 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title PEB22631H
    price $ 617.75 / each
    Category Pillow Block Bearings
    UNSPSC 31171511
    Harmonized Tariff Code 8483.20.40.80
    Manufacturer Name REXNORD
    Weight / kgm 5.45
    Inch - Metric Inch
    Brand LINK BELT
    Weight / LBS 12
    Other Features Double Row | Extended Inner Race
    Relubricatable Yes
    Global Part Number GPN 246950
    Mounting Method Tapered Adapter Sleeve
    Length Thru Bore 3.08 Inch | 78.232 Millimeter
    Actual Bolt Center to Center 6.3 Inch | 159Millimeter
    Nominal Bolt Center to Center 6.3 Inch | 160 Millimeter
    Bolt Spacing Minimum 0 Inch | 0Millimeter
    Base to Center Height 2.25 Inch | 57.15 Millimeter
    Bolt Spacing Maximum 0 Inch | 0Millimeter
    Housing Style 2 Bolt Pillow Block
    Insert Part Number B22631HL
    Number of Mounting Holes 2
    Expansion / Non-expansion Expansion
    Seals Floating Labyrinth
    Housing Material Cast Iron
    Mounting Bolts 5/8 Inch
    Housing Configuration 1 Piece Solid
