Specifications

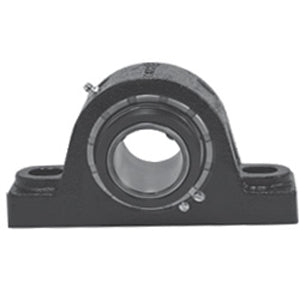

| title | PEB22623H |
| price | $ 464.51 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Weight / kgm | 3.18 |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 7 |
| Other Features | Double Row | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 246861 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 2.71 Inch | 68.834 Millimeter |
| Actual Bolt Center to Center | 5 Inch | 127Millimeter |
| Nominal Bolt Center to Center | 5.3 Inch | 133.5 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 1.875 Inch | 47.63 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B22623HL |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 1/2 Inch |
| Housing Configuration | 1 Piece Solid |
