Specifications

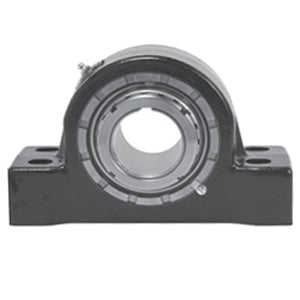

| title | PEB22531FE |
| price | $ 610.64 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 16 |
| Other Features | Double Row | Double Collar | Extended Inner Race | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 517361 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.813 Inch | 96.84 Millimeter |
| Actual Bolt Center to Center | 7 Inch | 178Millimeter |
| Nominal Bolt Center to Center | 7 Inch | 177.8 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 2.5 Inch | 63.5 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | B22531EL |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Expansion |
| Seals | Spring Loaded Lip |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
