Specifications

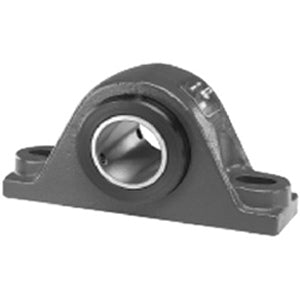

| title | PBE920X 1 15/16 |
| price | $ 326.07 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 5.607 |
| Inch - Metric | Inch |
| Brand | BROWNING |
| Weight / LBS | 11 |
| Other Features | Double Row | Heavy Duty | Double Collar | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 22288 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 6.6 Inch | 167 Millimeter |
| Bolt Spacing Minimum | 6.188 Inch | 157.175Millimeter |
| Base to Center Height | 2.25 Inch | 57.15 Millimeter |
| Bolt Spacing Maximum | 7.25 Inch | 184.15Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Expansion |
| Seals | Single Lip Contact |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
