Specifications
| title | PB22655FH |
| price | $ 1,739.56 / each |

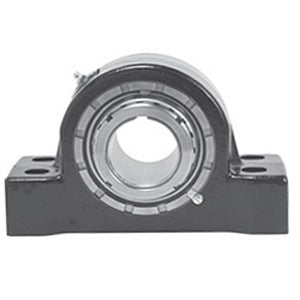

| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | LINK BELT |
| Inch - Metric | Inch |
| Brand | LINK BELT |
| Weight / LBS | 43 |
| Other Features | Double Row | Extended Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 247361 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 4.29 Inch | 108.966 Millimeter |
| Actual Bolt Center to Center | 10 Inch | 254Millimeter |
| Nominal Bolt Center to Center | 10 Inch | 254 Millimeter |
| Bolt Spacing Minimum | 0 Inch | 0Millimeter |
| Base to Center Height | 3.75 Inch | 95.25 Millimeter |
| Bolt Spacing Maximum | 0 Inch | 0Millimeter |
| Housing Style | 4 Bolt Pillow Block |
| Insert Part Number | B22655HL |
| Number of Mounting Holes | 4 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Floating Labyrinth |
| Housing Material | Cast Iron |
| Mounting Bolts | 3/4 Inch |
| Housing Configuration | 1 Piece Solid |
