FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

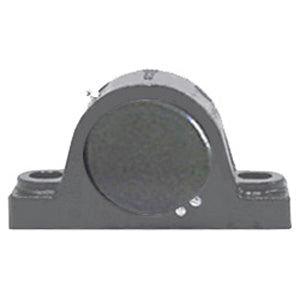

title | PB22631HHCK81 |
price | $ 786.61 / each |
Category | Pillow Block Bearings |
UNSPSC | 31171511 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | LINK BELT |
Inch - Metric | Inch |
Brand | LINK BELT |
Weight / LBS | 12 |
Other Features | Double Row | Closed End | Extended Inner Race |
Relubricatable | Yes |
Global Part Number GPN | 517571 |
Mounting Method | Tapered Adapter Sleeve |
Length Thru Bore | 3.08 Inch | 78.232 Millimeter |
Actual Bolt Center to Center | 6.3 Inch | 159Millimeter |
Nominal Bolt Center to Center | 6.3 Inch | 160 Millimeter |
Bolt Spacing Minimum | 0 Inch | 0Millimeter |
Base to Center Height | 2.25 Inch | 57.15 Millimeter |
Bolt Spacing Maximum | 0 Inch | 0Millimeter |
Housing Style | 2 Bolt Pillow Block |
Insert Part Number | B22631HL |
Number of Mounting Holes | 2 |
Expansion / Non-expansion | Non-expansion |
Seals | Floating Labyrinth |
Housing Material | Cast Iron |
Mounting Bolts | 5/8 Inch |
Housing Configuration | 1 Piece Solid |
