Specifications

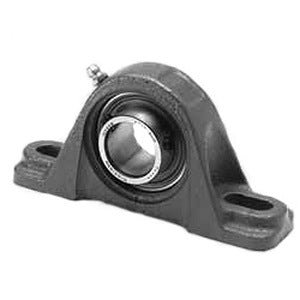

| title | PB220 X 2-7/16 |
| price | $ 221.28 / each |
| Category | Pillow Block Bearings |
| UNSPSC | 31171511 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 4.95 |
| Inch - Metric | Inch |
| Brand | HUB CITY |
| Weight / LBS | 10.9 |
| Other Features | Single Row | Spherical | Low Base | Has Trash Guard | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 519915 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.091 Inch | 53.1 Millimeter |
| Actual Bolt Center to Center | 0 Inch | 0Millimeter |
| Nominal Bolt Center to Center | 7.5 Inch | 190 Millimeter |
| Bolt Spacing Minimum | 6.75 Inch | 171.45Millimeter |
| Base to Center Height | 2.688 Inch | 68.275 Millimeter |
| Bolt Spacing Maximum | 8.125 Inch | 206.375Millimeter |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | B220 |
| Number of Mounting Holes | 2 |
| Expansion / Non-expansion | Non-expansion |
| Seals | Nitrile Rubber |
| Housing Material | Cast Iron |
| Mounting Bolts | 5/8 Inch |
| Housing Configuration | 1 Piece Solid |
